Flowmeter Model: PRZ Series (LZS Old model)
Application
- Working Pressure : ≤ 0.6 Mpa
- Operating Temperature : ≤ 60 °C
- Material Body : PC
- Material Connection : UPVC
- Float : ABS
- Guide Rod : SS304
Technical parameters
| Model | Range |

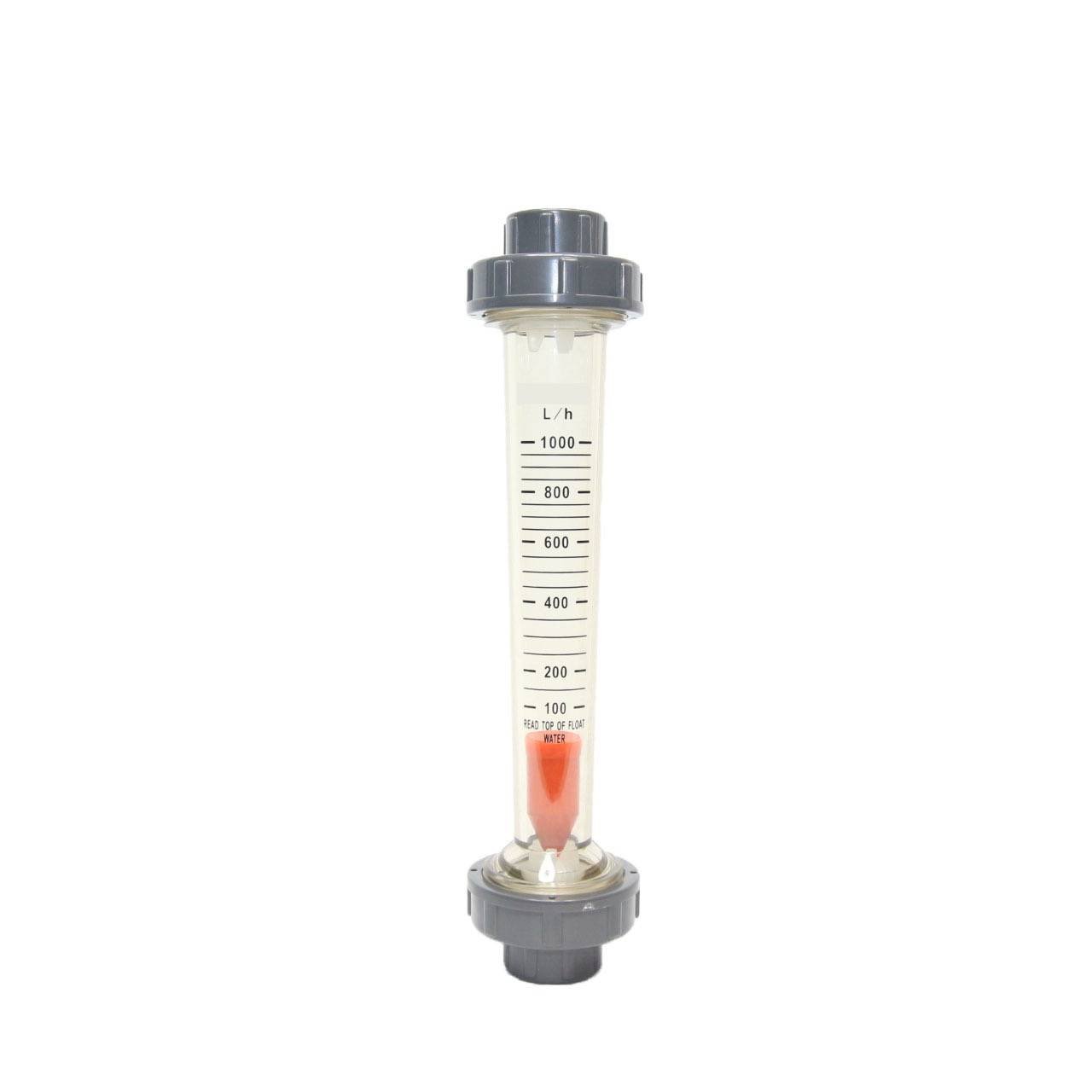

| PRZ-15 | 5-50 L/h 10-100 L/h 16-160 L/h 25-250 L/h 40-400 L/h 60-600 L/h 100-1000 L/h 0.5-4 LPM 1-7 LPM 1.8-18 LPM |
| PRZ-20 | 100-1000 L/h 160-1600 L/h 250-2500 L/h 3-30 LPM 4-40 LPM |
| PRZ-25 | 0.4-4 m³/h 0.6-6 m³/h 5-50 LPM 8-80 LPM 10-100 LPM |

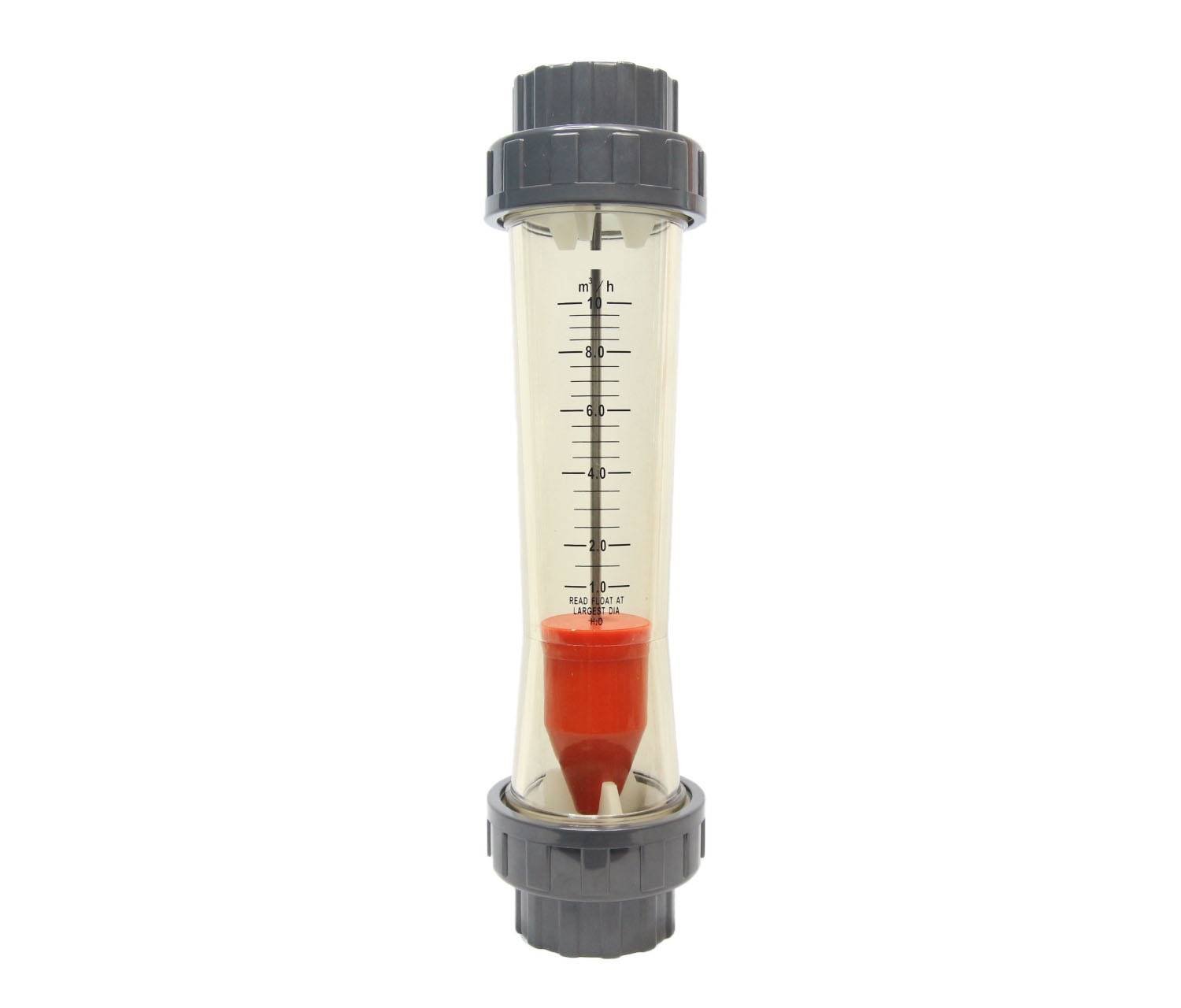

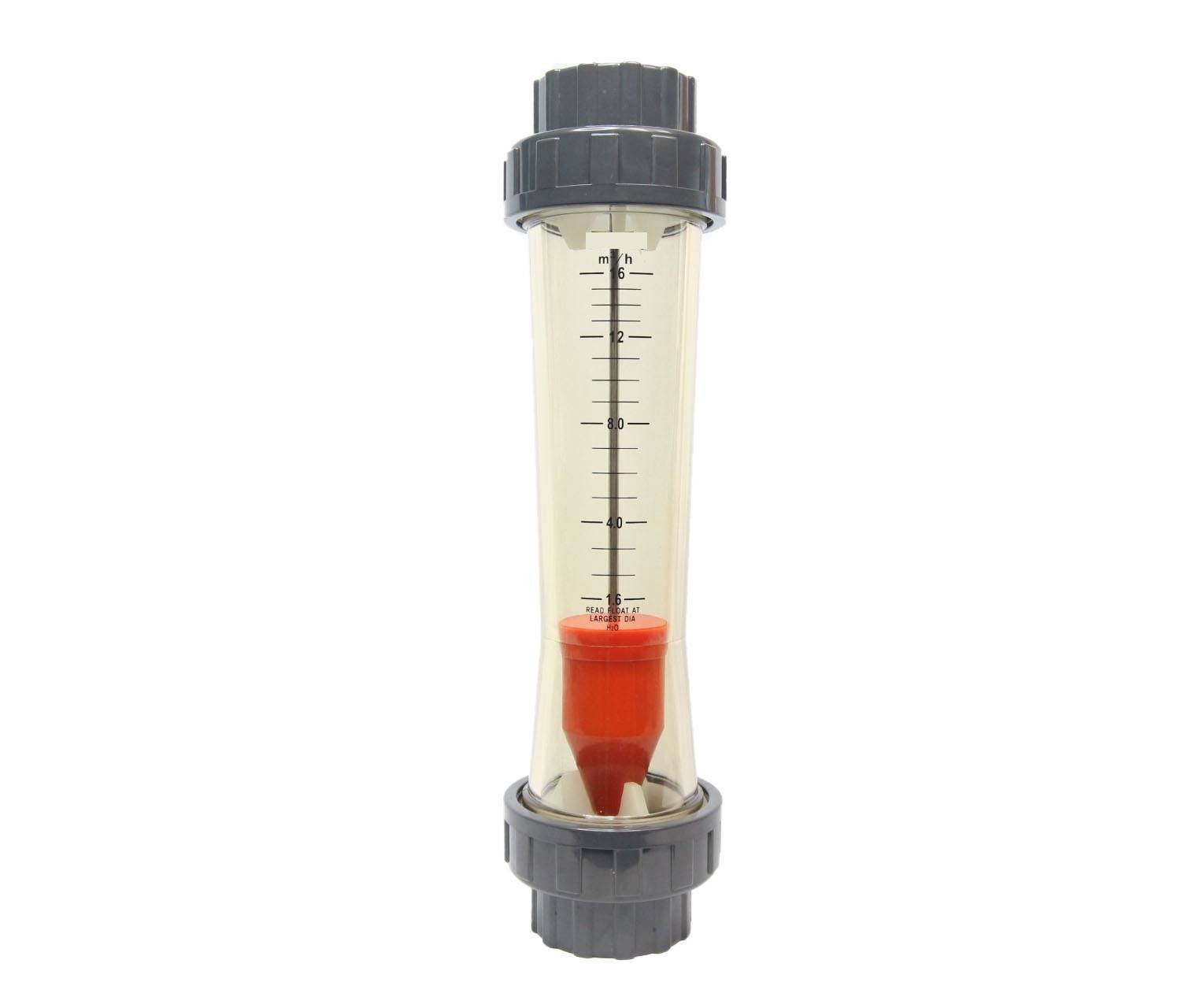

| PRZ-50 | 0.4-4 m³/h 1-10 m³/h 1.6-16 m³/h 10-100 LPM 20-180 LPM 25-250 LPM |

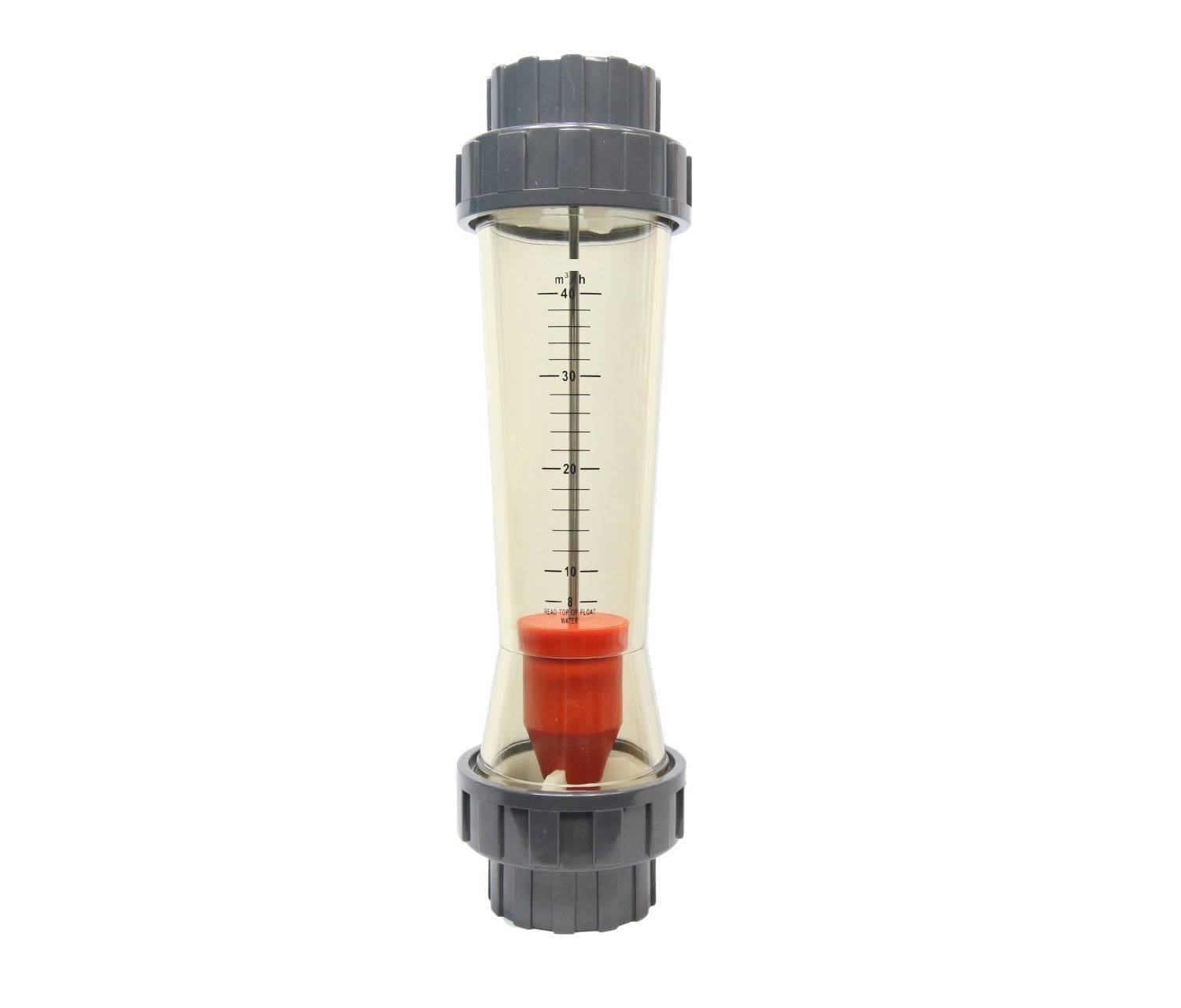

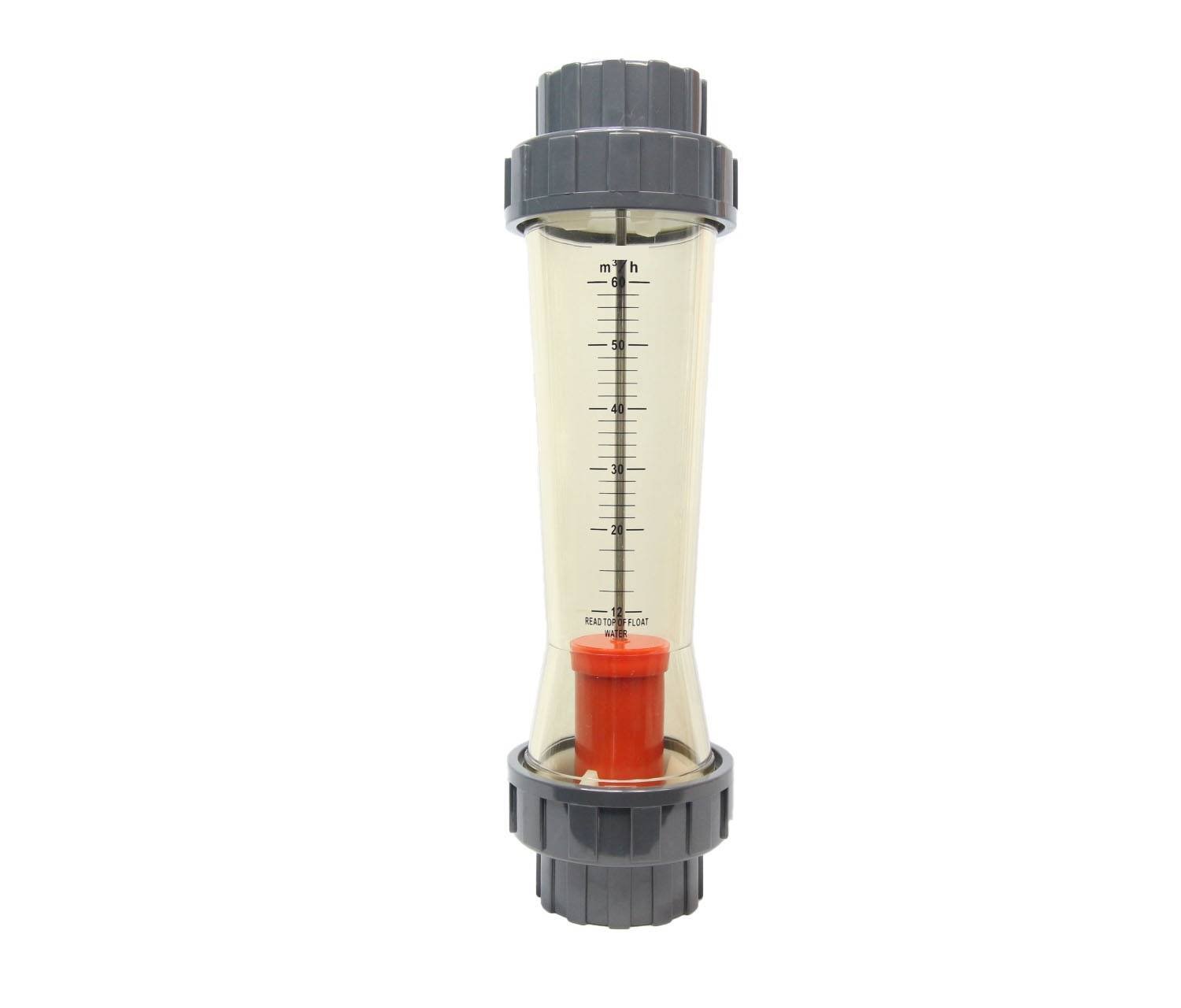

| PRZ-65 | 5-25 m³/h 8-40 m³/h 12-60 m³/h 80-400 LPM 150-650 LPM 200-1000 LPM |

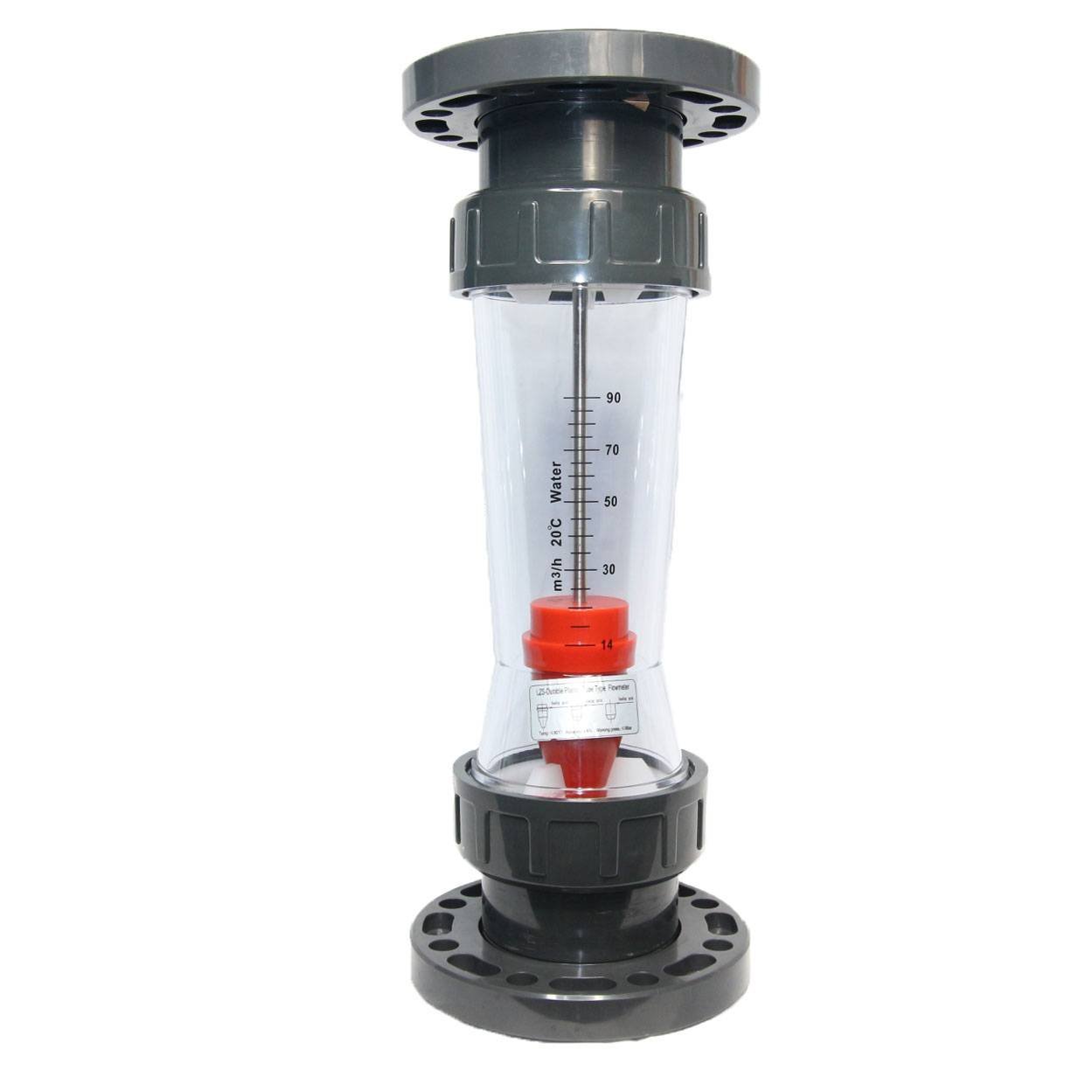

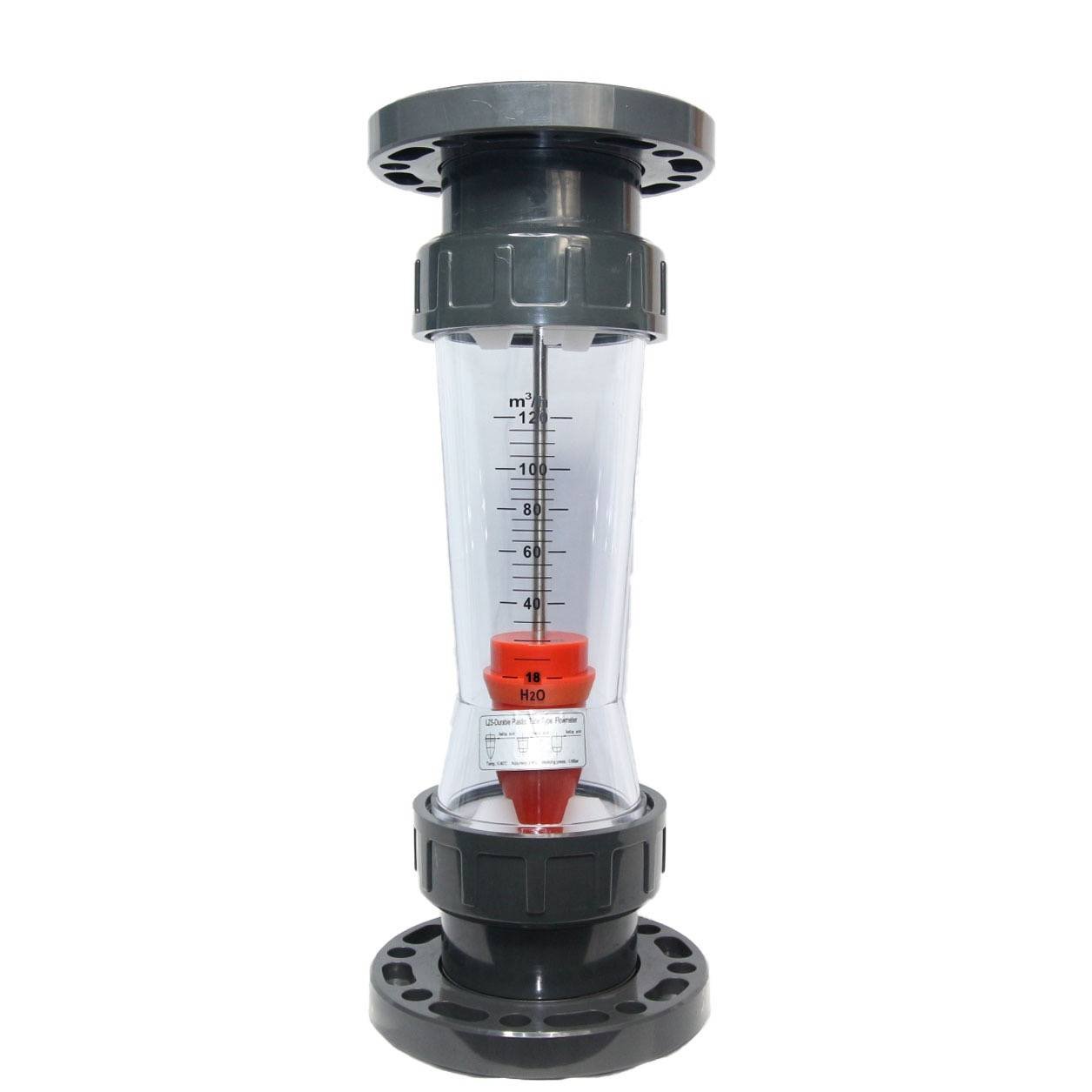

| PRZ-100 | 8-50 m³/h 12-60 m³/h 14-90 m³/h 18-120 m³/h |
| PRZ-125 PRZ-150 |
15-150 m³/h 22-18- m³/h 25-200 m³/h |
Gallery
Gallery for Flowmeter PRZ Series
 PRZ Series Front View |

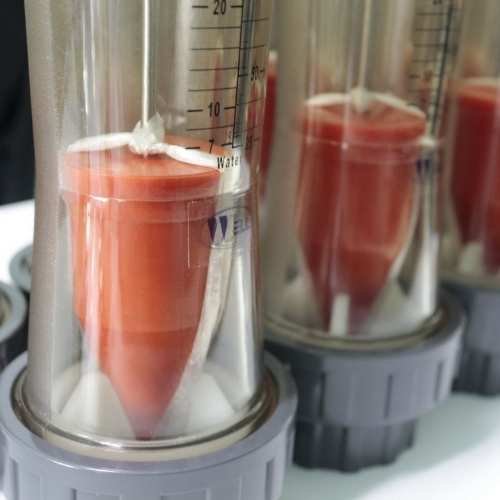

 PRZ Series Float ABS |

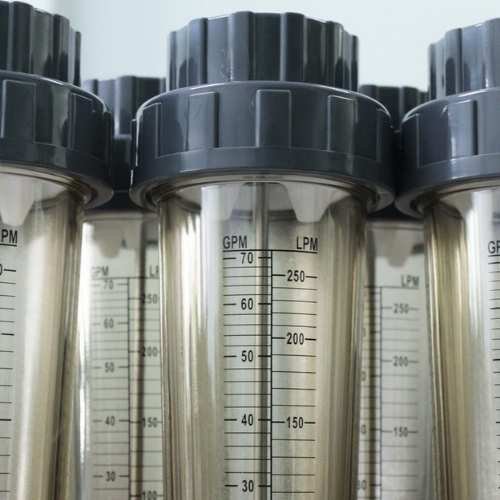

 PRZ Series Top |
Range of Flowmeter Rotameter PRZ Series
