Flowmeter Model: ARM-T Series
Application
- Working Pressure : ≤ 1.0 Mpa (10 bar)
- Operating Temperature : 0 - 65 °C
- Remark : Fixed screw for center distance F is MB x 11
Material
Body : Acrylic
Float : Stainless
Connection : ABS
Technical parameter
| Model | Range (Unit) | Size | Float | ||
| GPM (Water) | LPM (Water) | m³/h (Air) | |||
| ARM-15T | 0.1 – 0.5 | 0.5 – 2 |
0.1 – 1 0.5 – 3 0.6 – 6 1 – 12 1.6 – 16 2.5 – 25 |
1/2″ BSPT |
SS304 |
| 0.1 – 1 | 0.5 – 4 | ||||
| 0.2 – 2 | 1 – 8 | ||||
| 0.3 – 3 | 1 – 11 | ||||
| 0.5 – 5 | 2 – 18 | ||||
| ARM-25T | 1 – 10 | 5 – 35 |
2.5 – 25 6 – 60 10 – 100 25 – 250 |
1″ BSPT | |
| 2 – 20 | 10 – 70 | ||||
| 5 – 30 | 20 – 110 | ||||
| 15 – 35 | 50 – 130 | ||||
| 5 – 40 | 10 -150 | ||||
Gallery for ARM-Series

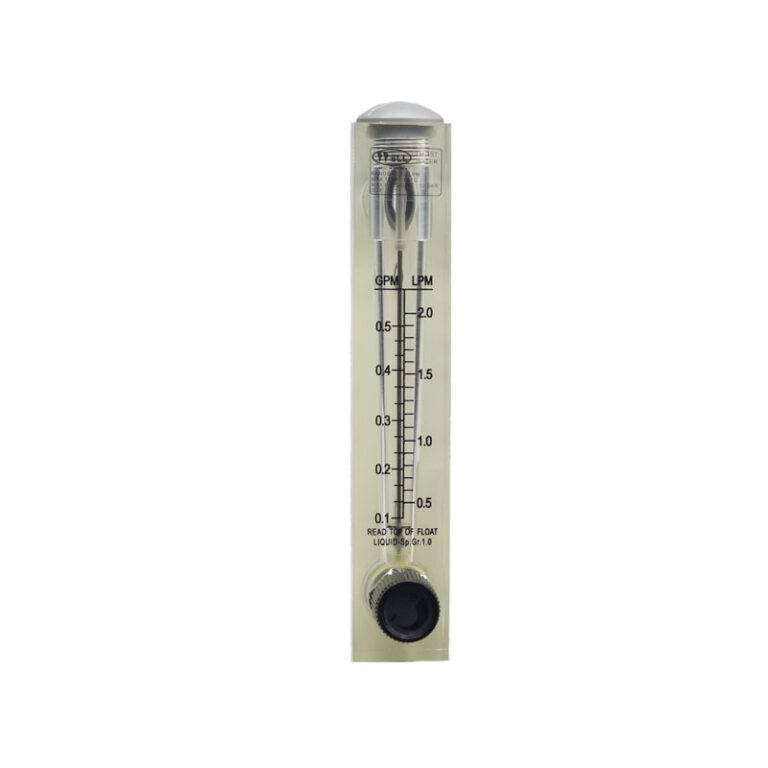

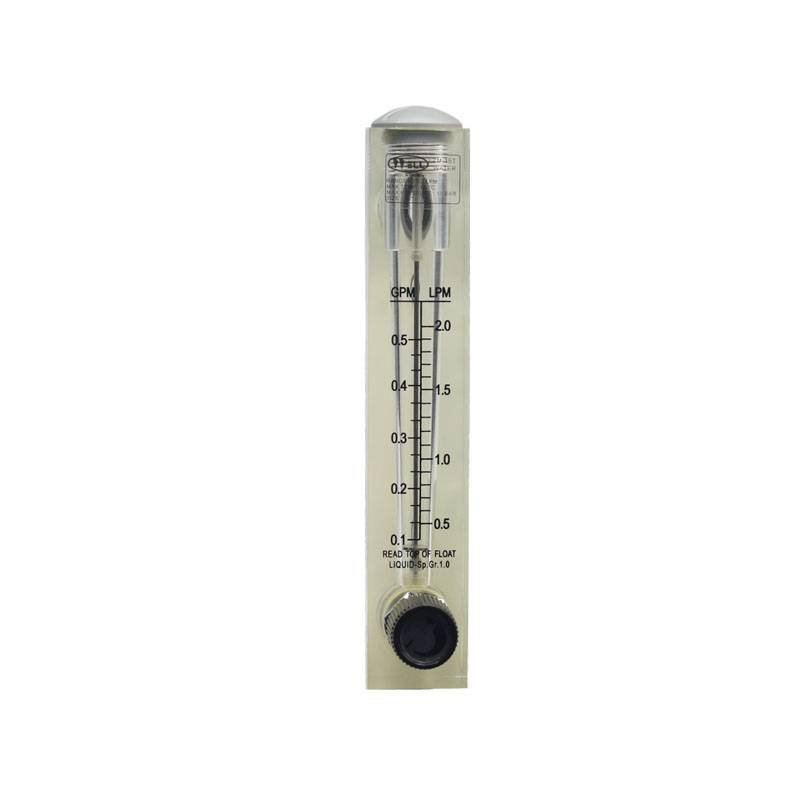

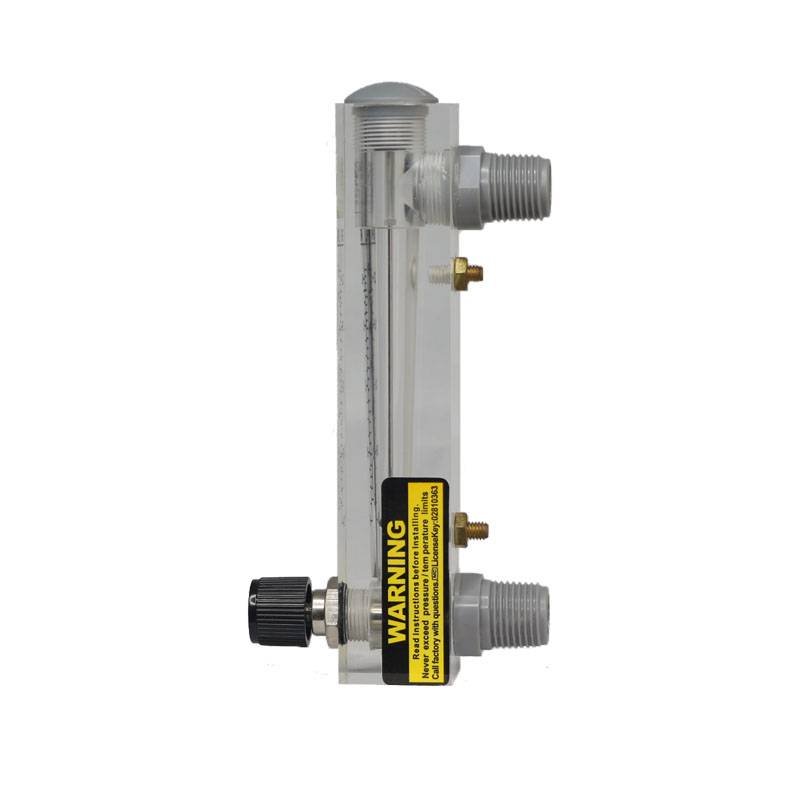

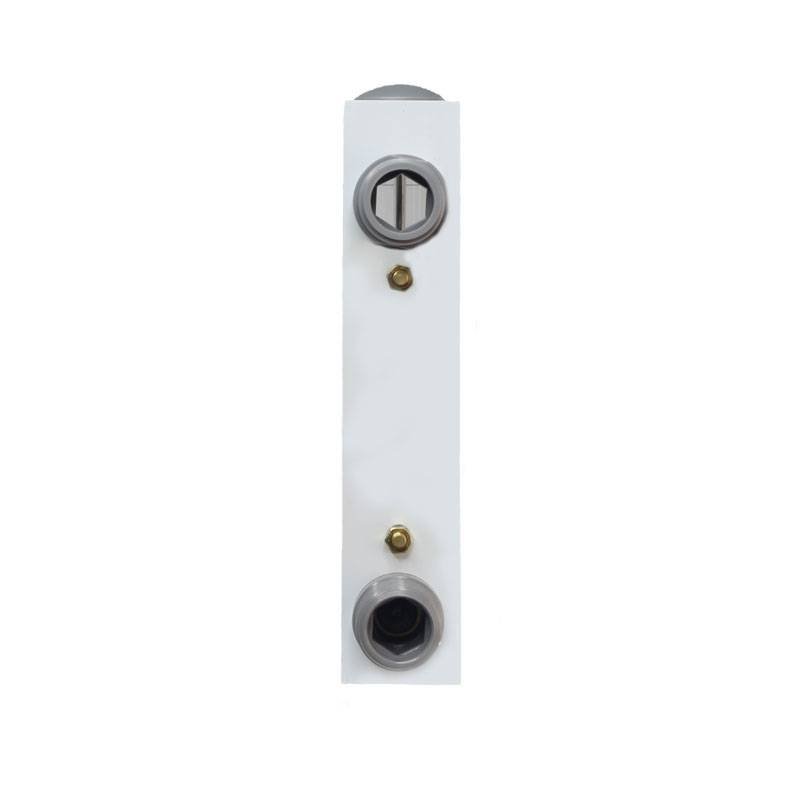

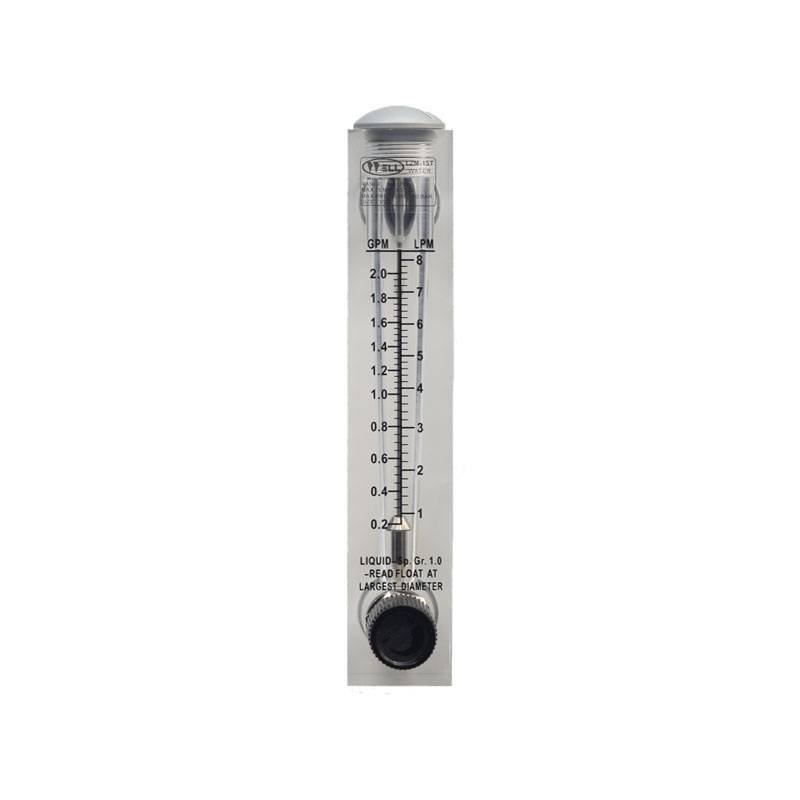

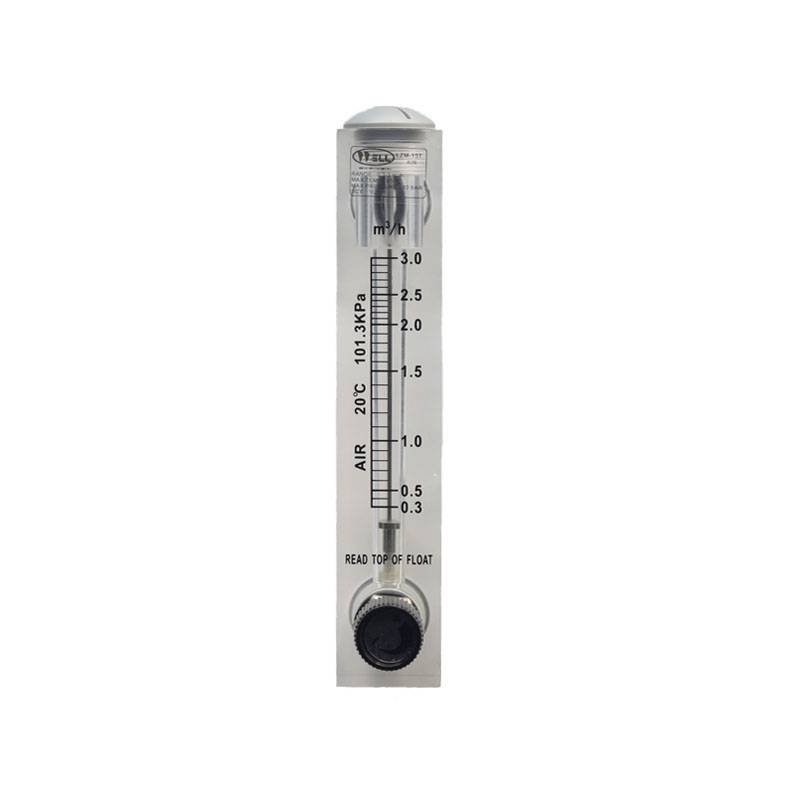

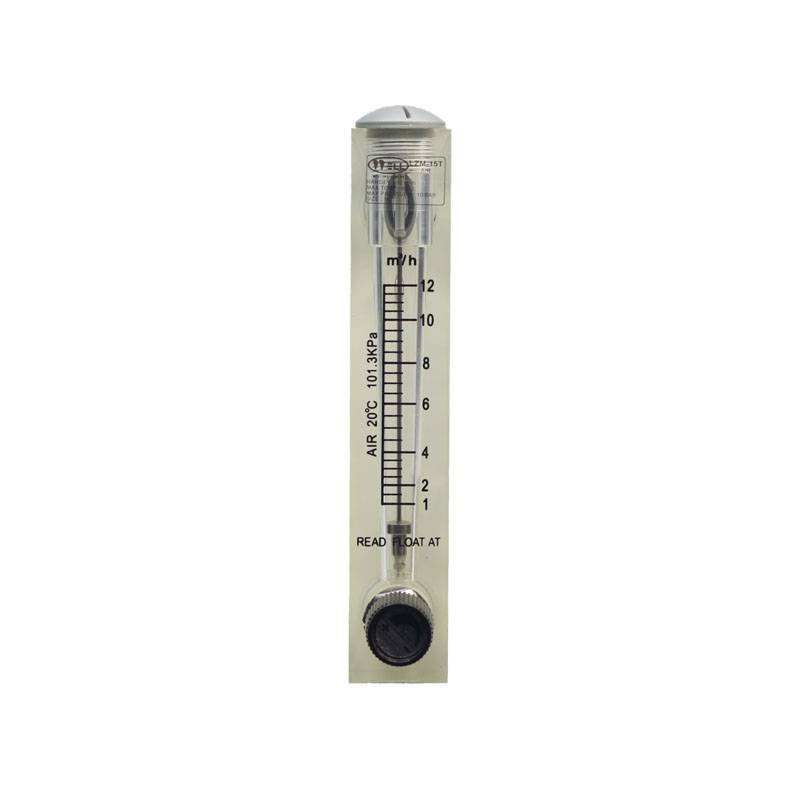

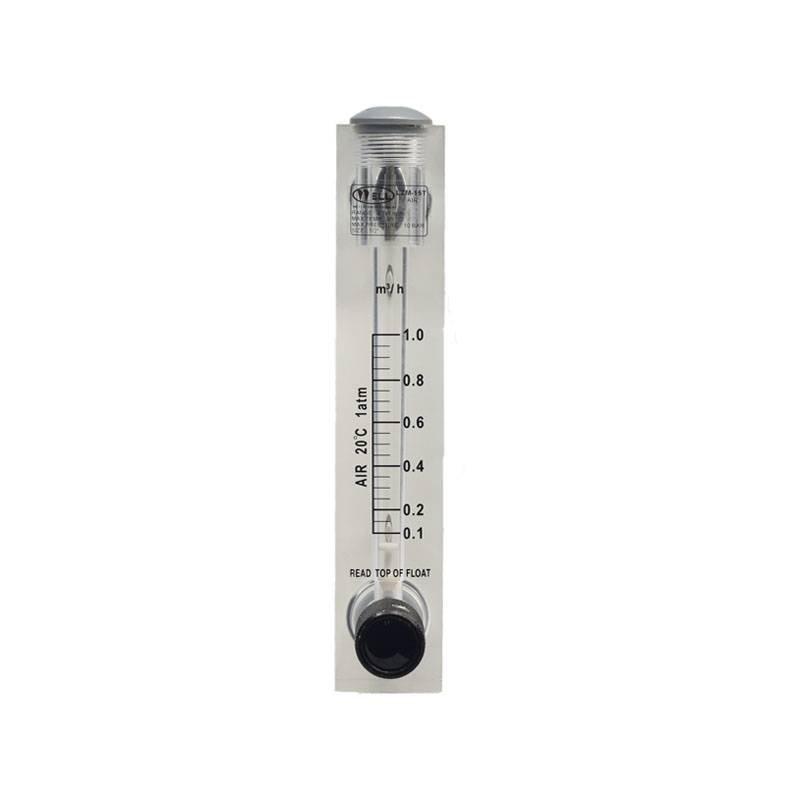

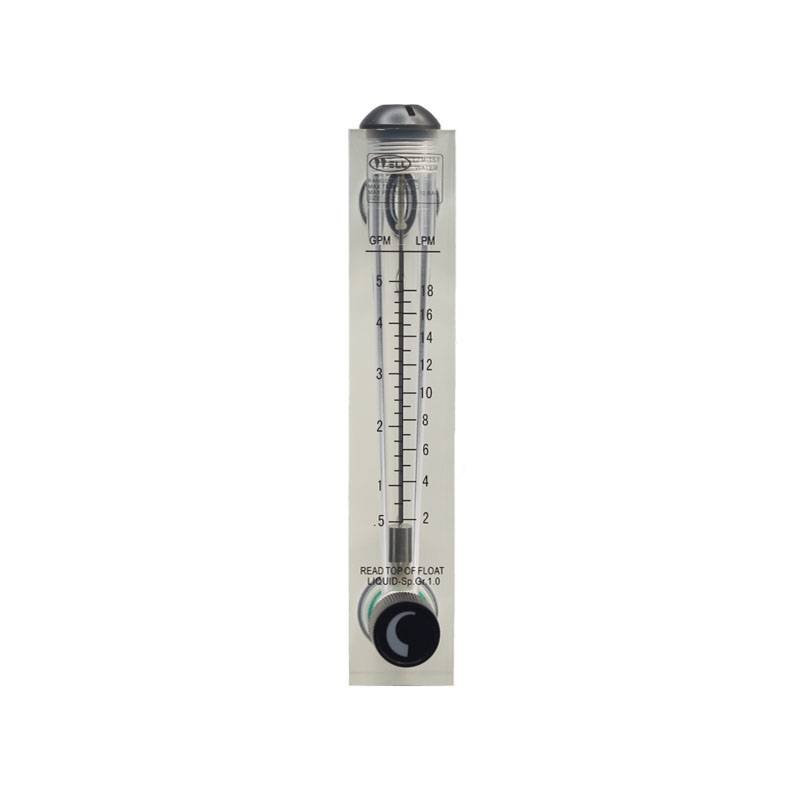

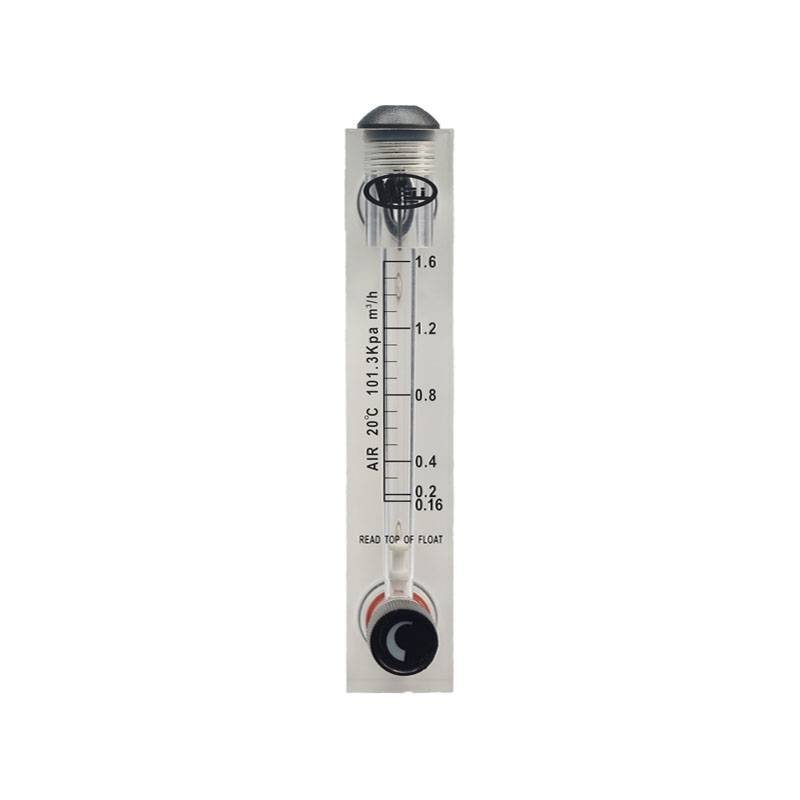

Panel Flowmeter "WELL" ARM Side Panel Flowmeter "WELL" ARM Back flowmeter panel โฟลมิเตอร์ well lzm arm LZM 15T WATER 18LPM flowmeter panel โฟลมิเตอร์ well lzm arm LZM 15T WATER 8LPM flowmeter panel โฟลมิเตอร์ well lzm arm LZM 15T WATER 2LPM flowmeter panel โฟลมิเตอร์ well lzm arm LZM 15T AIR 12m3h flowmeter panel โฟลมิเตอร์ well lzm arm LZM 15T AIR 3m3h flowmeter panel โฟลมิเตอร์ well lzm arm LZM 15T AIR 1m3h flowmeter panel โฟลมิเตอร์ well lzm arm LZM 15T AIR 1.6m3h
