ข้อมูลทางเทคนิคของรุ่น LZ Series
ข้อมูลจำเพาะของ Variable Area Flowmeter รุ่น LZ Series
| Measure Range | Water (20°C) (2.5-10,000 L/h) Air (20°C, 1.101325 Mpa) (0.07-750) m³/h |
| Range Ratio | 10:1 |
| Accuracy Grade | ±1.5% , ±2.5% |
| Fluid Working Pressure | DN15-DN50 : 4.0 MPa DN80-DN150 : 1.6 MPa |
| Working Pressure of Coating | 1.6 Mpa |
| Fluid Working Temperature | -80°C ~+200 °C (PTFE ≤ +85°C) (For Model PTFE ≤ +85°C) |
| Connection Type | (Flange Connection, Threaded connection or Tri-clamp connection flange refer to standard GB/T9119; ANSI 150 lbs, 200 lbs; HG20592-20635; Other standard flange can e made to the user requirement.) |
| Environment Temperature | -25°C~+55°C |
| Medium Viscidity | DN15 ≤ 5 mPa.S; DN25-DN100 ≤ 250 mPa.S |
| Electricity Signal Outout | Output Signal : 1% Linear Accuracy : 1% Temperature Influence : 0.5% / 10°C Power Supply : 13-30 VDC Power Supply Consume : ≤ 250 mW |
| Restrict Alarm | Power Supply : 24 (±10%) VDC Power Loss : ≤ 3W Working Temperature : -25°C to +60°C |
| Explosion-proof Gr | ExibIICT อ่านเพิ่มเติมมาตรฐานกันระเบิด |

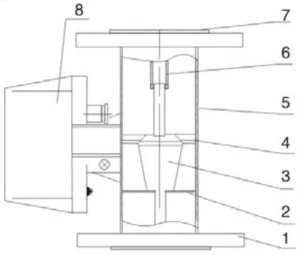

ลำดับชิ้นส่วนวัสดุ
- Flange Connection
- Guider
- Float
- Measuring Tube
- Tube Body
- Stopper
- Spring Collar
- Indicator
ภาพสินค้า
 LZ-Z Series (Front View) |

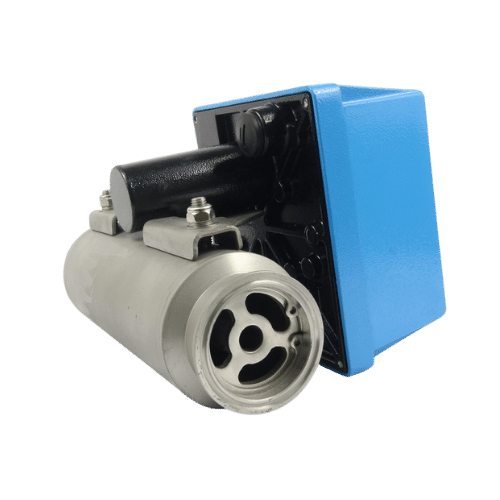

 LZ-Z Series (Side View) |

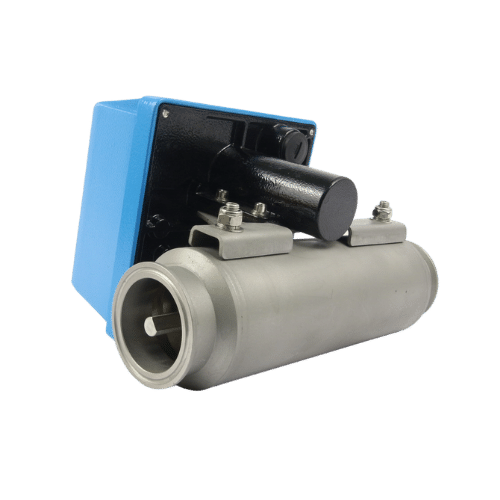

 LZ-Z Series (Bottom view) |

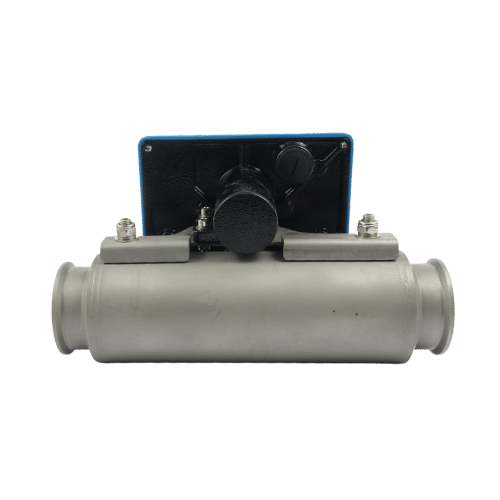

 LZ-Z Series (Bottom) |

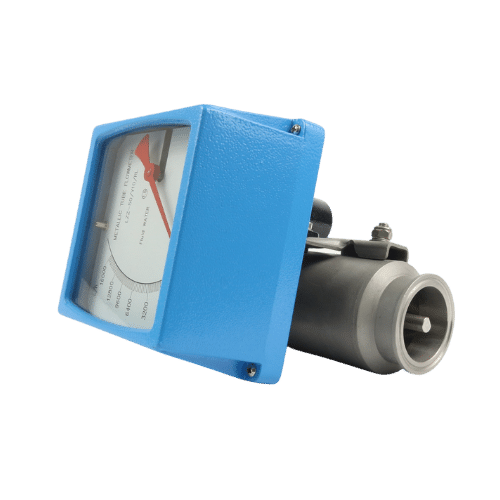

 LZ-Z Series (Side View) |
