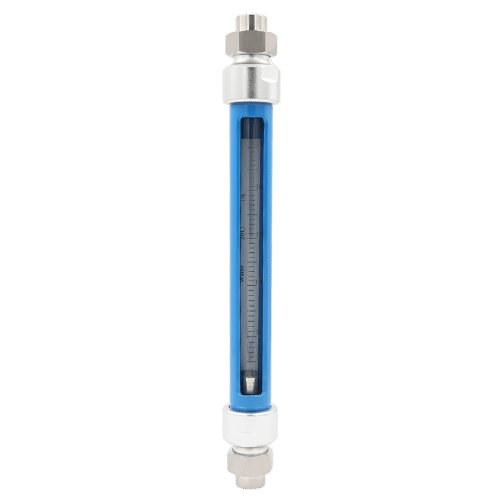

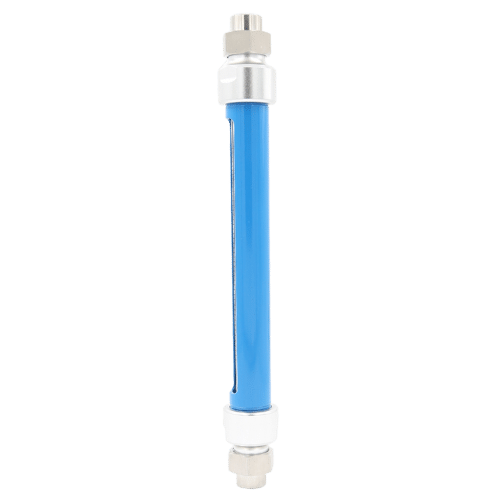

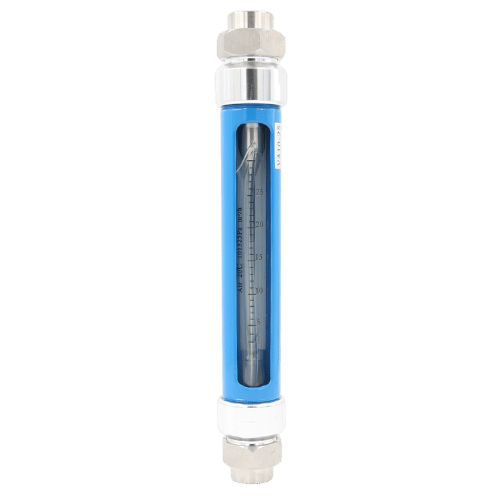

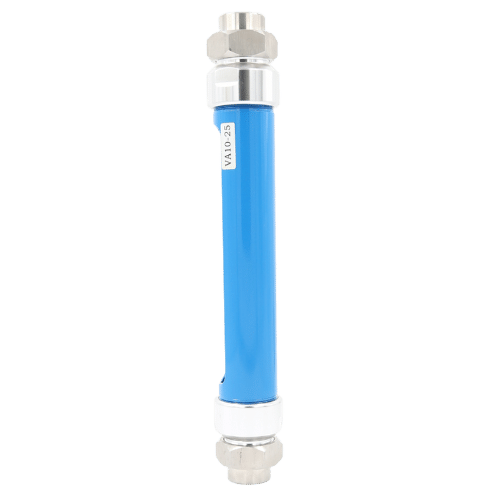

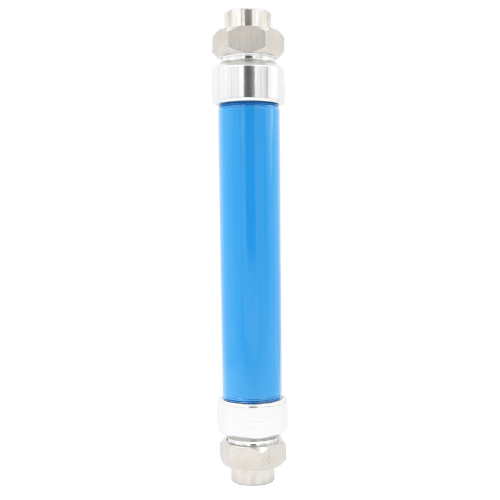

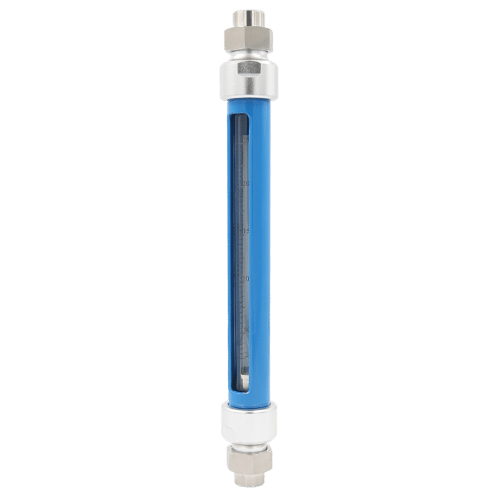

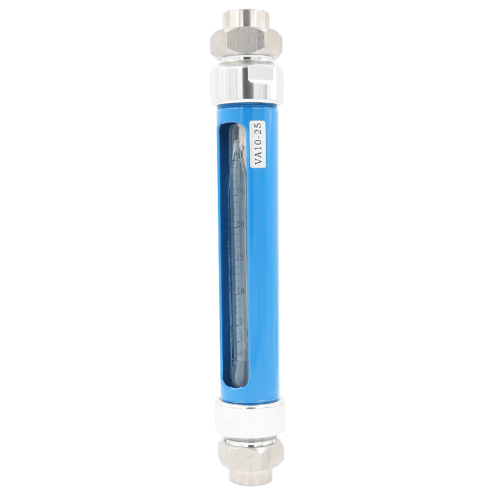

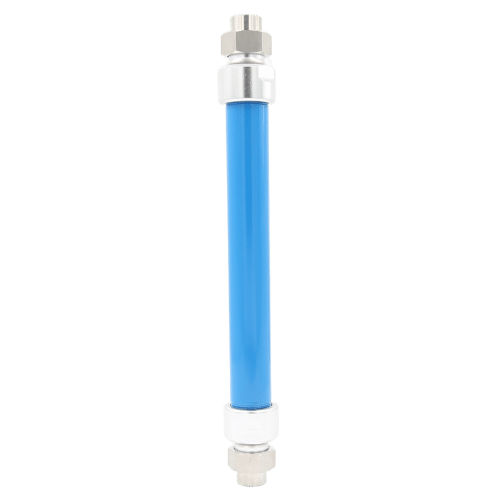

Flowmeter Model : VA10S
Application
- The Product can also according to different fluid temperature, pressure, density, viscosity and other physical quantities, to provide users with different fluid flow scale, the different status, solve the problem of fixed value, greatly facilitate the user of the user.
Technical parameters
| Measure Range | Water 20°C 4-6000 L/h, Air (20°C, 101325Pa) 0.12-300 m³/h |
| Range of degrees | 10 : 1 |
| The accuracy level | 1.6 |
| Taper pipe Length | 300 mm. |
| Scale | Mm scale and flow scale |
| By current body condition | Maximum pressure : DNUS-25 : 1.0 MPa , DN40 : 0.9 Mpa The Highest temperature : 120°C |
Specification
| Norminal Diameter (DN) |
Model (Ordinary) |
Model (The corrosion type) |
Water (20°C, L/h) |
Air (20°C, 101325Pa, m³/h) |
| 15 | VA10-15 | VA10-15F | 4-40 6-60 10-100 16-160 25-250 40-400 63-630 |
0.12-1.2 0.2-2 0.3-3 0.5-5 0.8-8 1.2-12 2-20 |
| 25 | VA10-25 | VA10-25F | 63-630 100-1000 160-1600 250-2500 |
2-20 3-30 5-50 8-80 |
| 40 | VA10-40 | VA10-40F | 160-1600 250-2500 400-4000 |
5-50 8-80 12-120 |
| 50 | VA10-50 | VA10-50F | 400-4000 630-6300 1000-10000 |
12-120 20-200 30-300 |
